Quality platform user manual
Chapter 1 Quality platform user instruction
1.1 Quality data
Quality data is used to manage the equipment which is used for analyzing, downloading and converting uploaded data. And through the equipment’s ID, filename and file size to search for matching data.
Quality data page, as following:

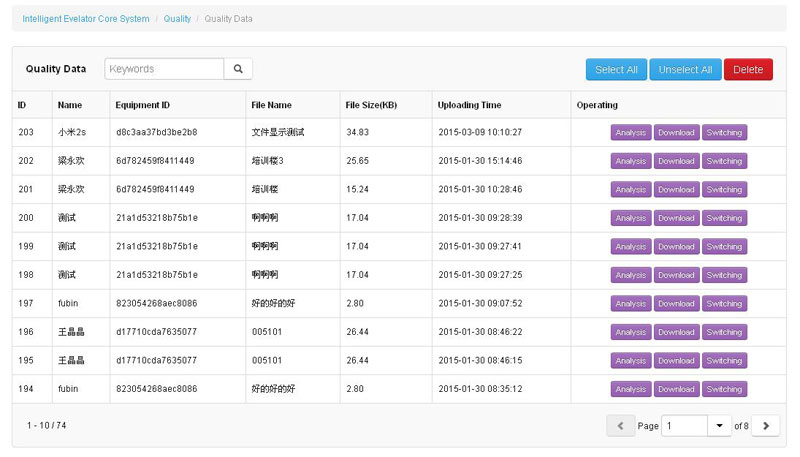

1.1.1 Quality data page
Click on the data analysis button, to view the equipment online data analysis and to view different speed curve analysis data.

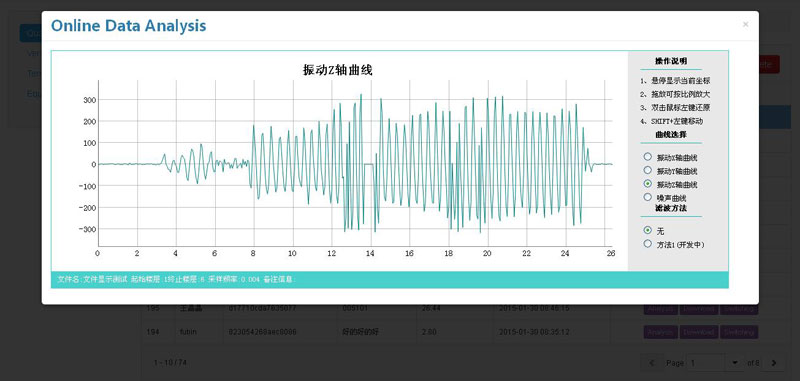

1.1.2 Quality data analysis page
Click on the data download button to download the zip format extension which was uploaded by the equipment.

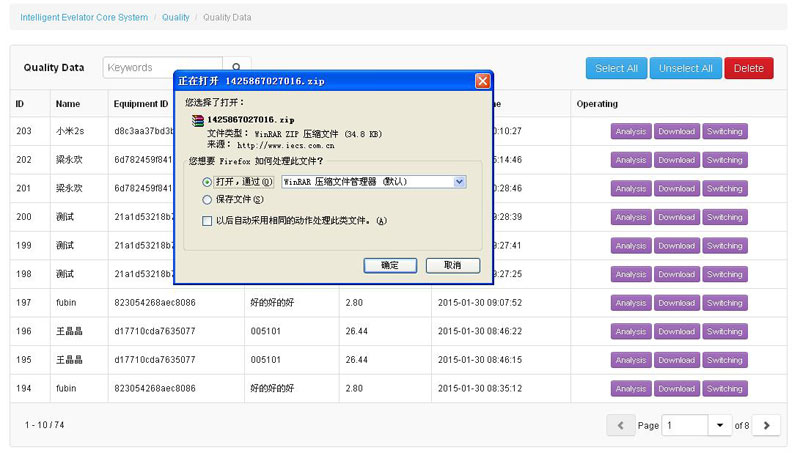

1.1.3 Quality data download page
Click on the data converting button to download VE3 format extension which was uploaded by the equipment.

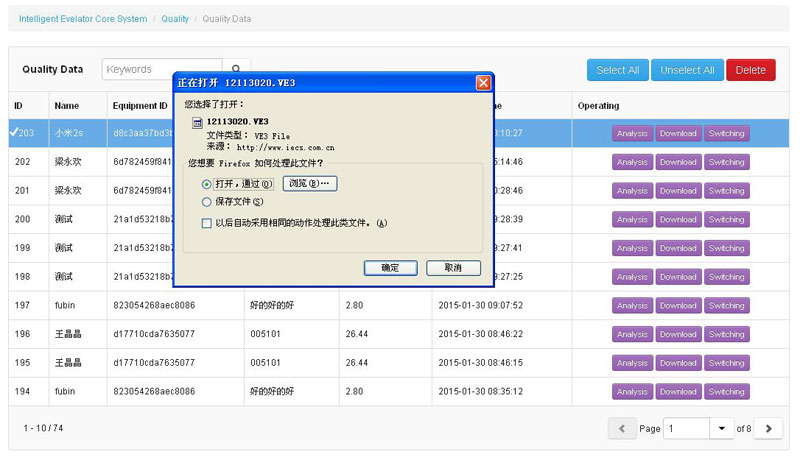

1.1.4 Quality data converting page
1.2 Equipment Administration
Equipment administration is to manage the equipment own by elevator factory, it is able add and delete through equipment ID.
Equipment administration page, as following:

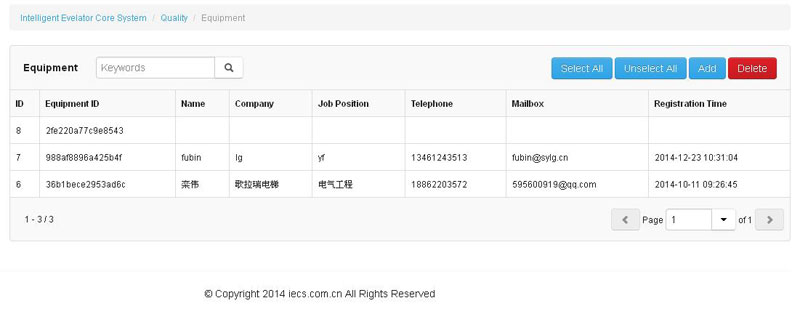

1.2.1 Equipment administration page
Click on “Add” button, pop-up adding screen, fill in equipment ID to add. As the following page shown below:

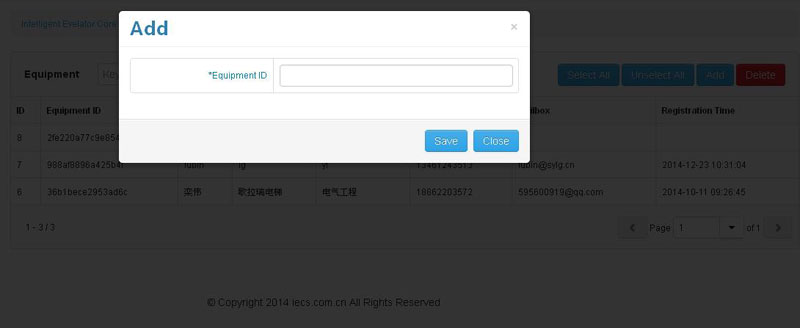

1.2.2 Equipment administration adding page
Select the data click on “delete” button to delete the selected data.
